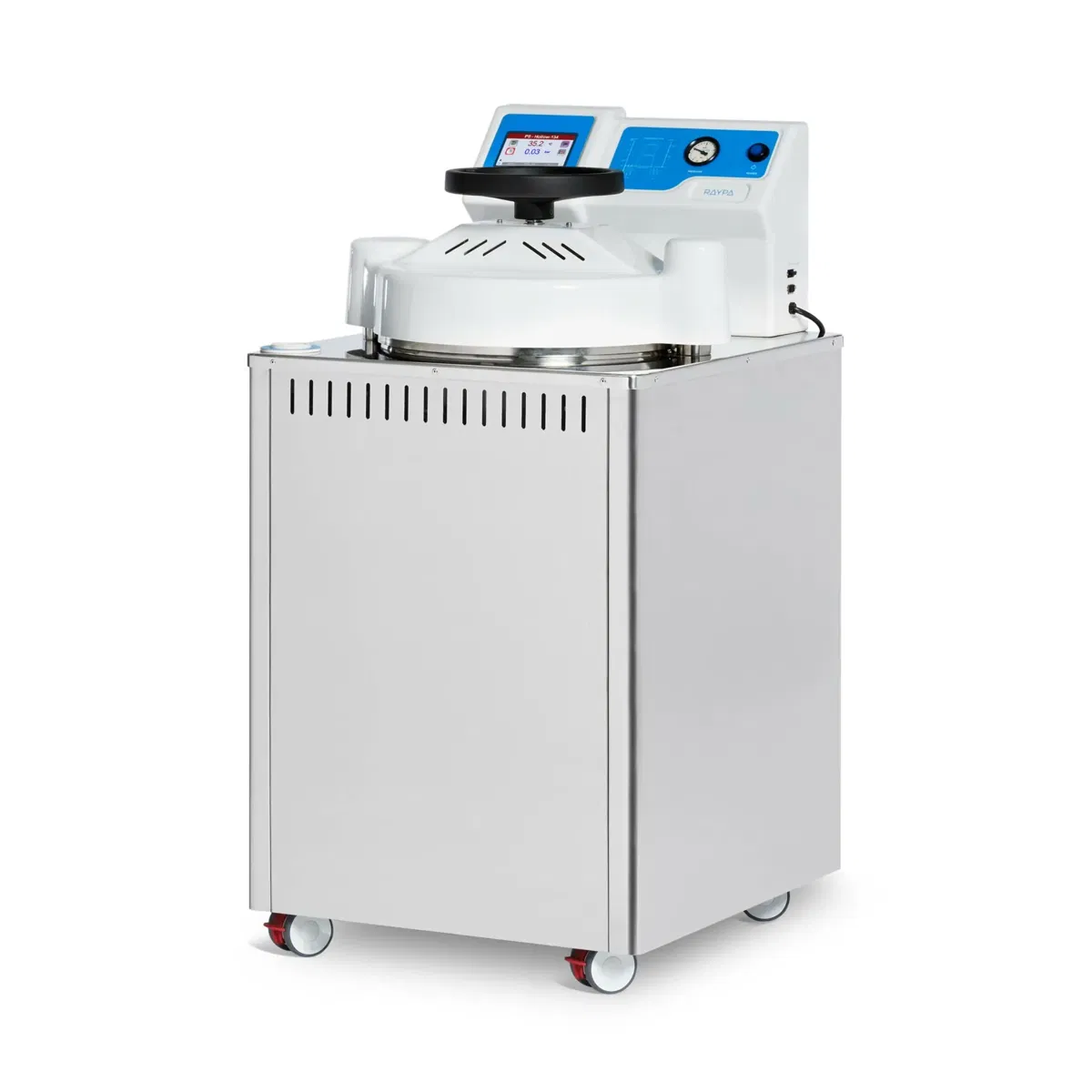

RAYPA Vertical Autoclave with Prevacuums and Drying AE-B Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The AE-B Series vertical laboratory autoclaves with prevacuums and drying are particularly suitable for sterilizing porous loads and objects with complex geometries.
- Excellent performance, advanced features and complete versatility
- Solid loads are completely dry upon cycle completion
- Entirely automated with a 5” touchscreen
Vertical laboratory autoclaves with prevacuums and drying
The AE-B Series vertical autoclaves feature advanced characteristics designed to meet all the sterilization needs of industrial, healthcare and research laboratories, aiming to enhance productivity and process all types of loads.
They are specially optimized for processing loads that require greater steam penetration for proper sterilization, such as porous solids, packaged loads, items with hollows and cavities, and objects with complex geometries, as well as liquids.
Thanks to their outstanding versatility in sterilizing all types of loads, the integrated independent steam generator, touchscreen display, separate clean water tank, initial prevacuum pulses, final vacuum drying, and direct water discharge, these autoclaves excel in performing everything from the simplest to the most demanding applications.
Rapid sterilizations with excellent steam penetration
Achieve fast cycle times with instant steam production from the built-in steam generator. The pre-vacuum phase, featuring multiple vacuum pulses, thoroughly removes air pockets, ensuring effective sterilization of all types of loads.
Thoroughly dries the load with the final drying function
Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, ensuring safe processing of porous solids and packaged objects. There is no need to dry the load in an external oven.
| Specifications | AE-50-B | AE-75-B | AE-110-B | AE-150-B |
|---|---|---|---|---|
| Total/usable volume of the chamber (L) | 55/50 | 79/75 | 115/110 | 175/153 |
| Usable dimensions of the chamber (Ø x H mm) | 300 x 710 | 400 x 600 | 400 x 850 | 500 x 760 |
| External dimensions (L x D x H mm) | 505 x 580 x 1290 | 610 x 700 x 1185 | 610 x 700 x 1435 | 750 x 820 x 1400 |
| Loading height (mm) | 975 | 870 | 1120 | 1085 |
| Net weight (Kg) | 99 | 135 | 165 | 245 |
| Available powers (W) | 3600 | 3600 or 6000 | 6000 or 9000 | 6000 or 9000 |
| Standard voltage* | 230 | 230 | 400 | 400 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. Special models with increased power may operate with other voltages. | ||||
| General Features | |
|---|---|
| Adjustable sterilization temperature | 105 – 134ºC |
| Adjustable sterilization time | 1 – 250 min |
| Adjustable prevacuum pulses | 1 – 3 |
| Adjustable drying time | 1 – 360 min |
| Max. pressure | 2,1 Barg |
| Sterilization Control System | |
|---|---|
| Control type | Fully automatic microprocessor control by either chamber temperature probe or flexible core temperature probe |
| Air purge system | Mechanical displacement by vacuum pump |
| Heating system | Independent integrated steam generator |
| Vacuum drying system | Vacuum pump plus heating jacket |
| Prevacuum system | Vacuum pump |
| Materials | |
|---|---|
| External building material | AISI-304 stainless steel |
| Sterilization chamber material | AISI-316L stainless steel |
| Gasket material | Silicone rubber |
| Connections | |
|---|---|
| Connection to PC | Ethernet |
| Connection to printer | Integrated |
| Programs and Interface | |
|---|---|
| Number of programs | 50 (14 preset and 36 user free) |
| Programmable auto-start | Unlimited range |
| Screen type | 5’’ TFT touchscreen |
| Door and Safety | |
|---|---|

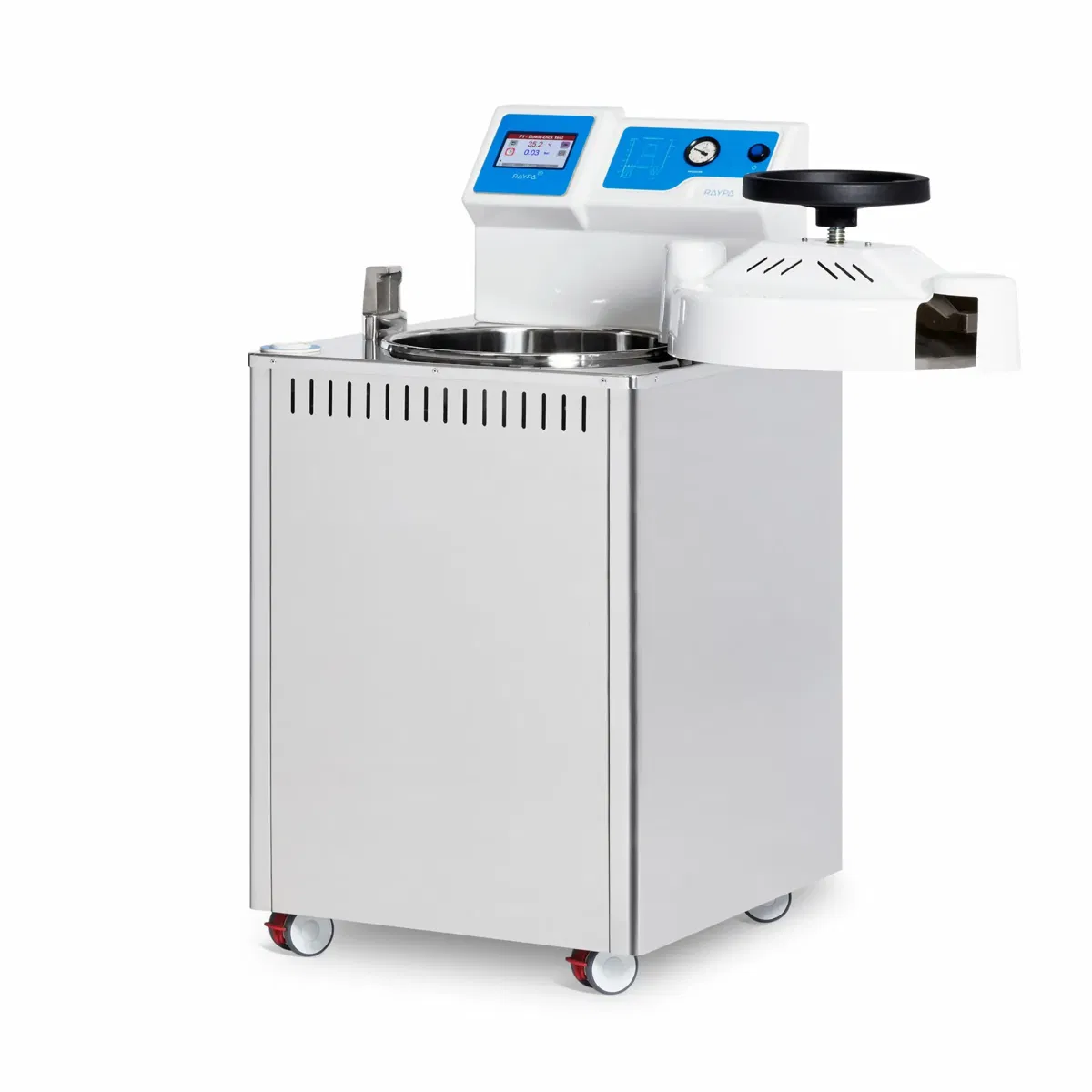

| Opening door mode | Horizontal swiveling door with blocking wheel |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº, P & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel, digital display on screen, registry on software and printer tickets |
| Water Management and Drainage | |
|---|---|
| Water management | Independent manually fed clean water tank that automatically feeds the independent integrated steam generator. Optional upgrade to fully automatic clean water feed directly from water network |
| Drainage system | Drainage connections for the direct discharge, to drain the independent clean water tank and for the overflow of the independent clean water tank |
| Additional Features | |
|---|---|
| Casters | Included swiveling premium casters with brakes |
| Model | TLV-50, TLV-75, TLV-110, TLV-150 |
|---|
