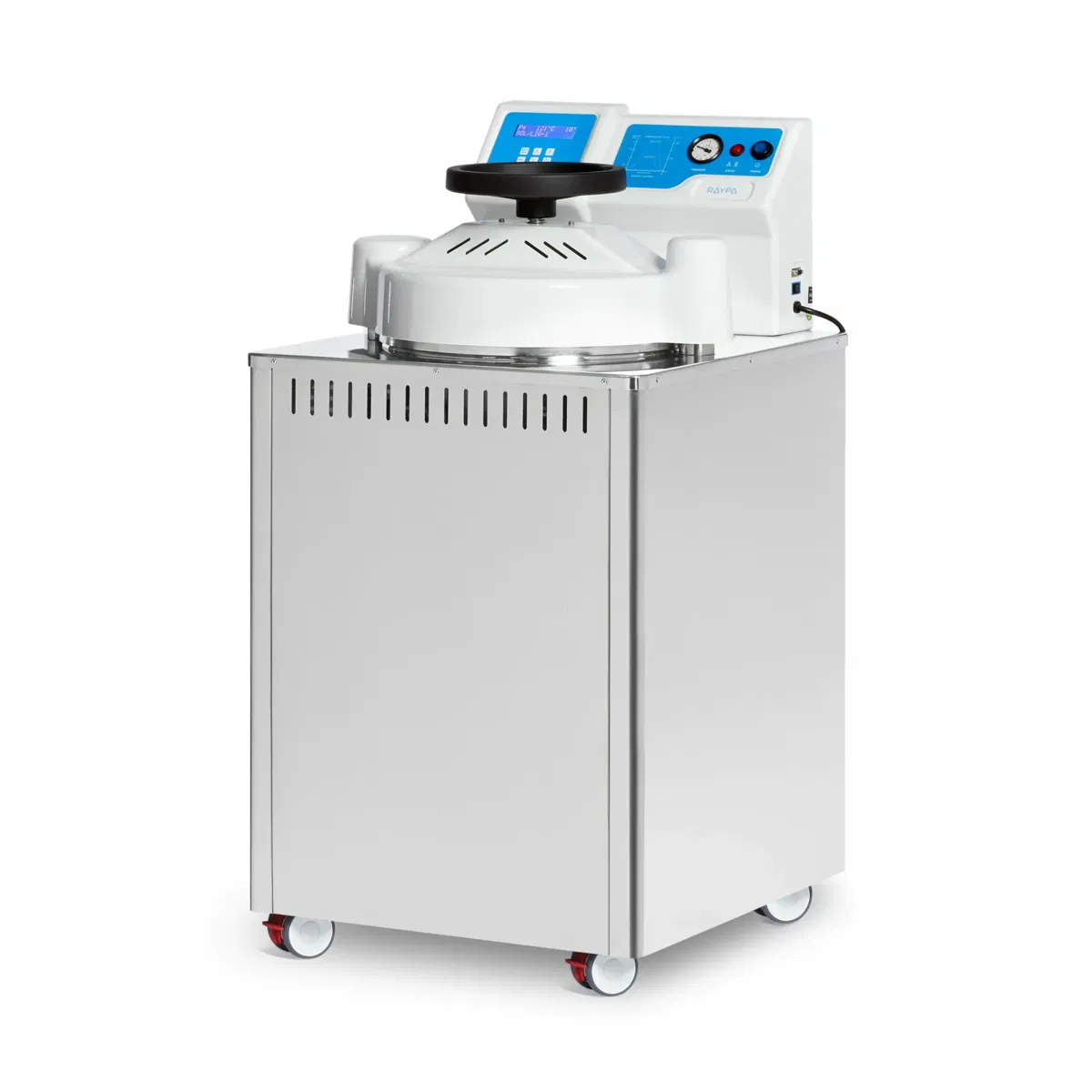

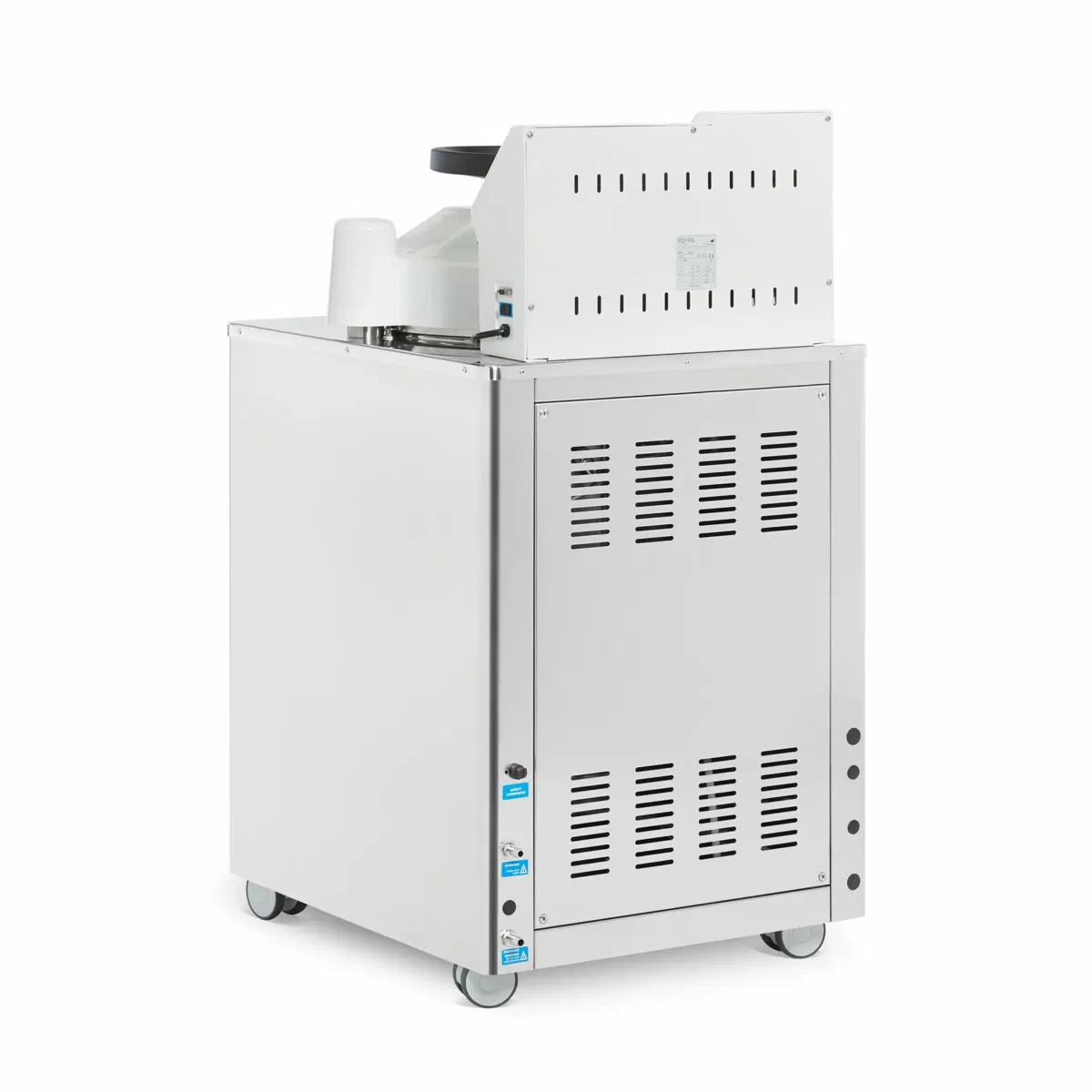

RAYPA Vertical Autoclave without Drying AES Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The AES Series vertical laboratory autoclaves without drying are designed to sterilize a wide variety of laboratory materials in an economical and straightforward manner.
- Cost-effective with robust performance
- Easy to use, simple installation and minimal maintenance
- Excellent construction materials
Vertical laboratory autoclaves without drying
The AES Series vertical autoclaves meet the fundamental sterilization needs in industrial, educational and research facility laboratories to increase productivity and simplify sterilization operations.
They are designed for sterilizing a wide range of solid and liquid loads, including glass, plastics, metal utensils, laboratory waste bags, liquids, culture media and other laboratory items.
Suitable for the general laboratory, they are optimized for easy operation, feature multiple safety characteristics to protect users in their daily routine, and are very simple to install as they are plug and play equipment.
Economical, resilient and limited resource consumption
Built using high-quality construction materials, they feature a sterilization chamber made of exceptionally resistant AISI-316L stainless steel, with the external building also made of stainless steel. The components are sourced from top-tier manufacturers. Limited consumption of water, energy and operator time.
Customize with a range of accessories
Choose the baskets and crane that best fit your needs. Install a flexible probe for more accurate and safe sterilization of liquids. Record and analyze your processes with dedicated software or an embedded printer. You can also enhance the heating capacity of your unit to save time.
| Specifications | AES-28 | AES-50 | AES-75 | AES-110 | AES-150 |
|---|---|---|---|---|---|
| Total/usable volume of the chamber (L) | 33/31 | 55/50 | 79/75 | 115/110 | 175/153 |
| Usable dimensions of the chamber (Ø x H mm) | 300 x 440 | 300 x 710 | 400 x 600 | 400 x 850 | 500 x 780 |
| External dimensions (L x D x H mm) | 505 x 580 x 1110 | 505 x 580 x 1290 | 610 x 700 x 1185 | 610 x 700 x 1435 | 750 x 820 x 1400 |
| Loading height (mm) | 795 | 975 | 870 | 1120 | 1085 |
| Net weight (Kg) | 61 | 65 | 98 | 122 | 198 |
| Available powers (W) | 2000 or 3200 | 3200 or 5000 | 3200 or 6000 | 4500, 6000 or 9000 | 6000 or 9000 |
| Standard voltage* | 230 | 230 | 230 | 400 | 400 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| *Other voltages and electrical configurations available on request. Special models with increased power may operate with other voltages. | |||||
| General Features | |
|---|---|
| Adjustable sterilization temperature | 100 – 134ºC |
| Adjustable sterilization time | 1 – 250 min |
| Max. pressure | 2,1 Barg |
| Sterilization Control System | |
|---|---|
| Control type | Fully automatic microprocessor control by either chamber temperature probe or flexible probe temperature probe |
| Air purge system | Gravity displacement |
| Materials | |
|---|---|
| External building material | AISI-304 stainless steel |
| Sterilization chamber material | AISI-316L stainless steel |
| Heating elements material | Incoloy® 825 |
| Gasket material | Silicone rubber |
| Connections | |
|---|---|
| Connection to PC | RS-232 |
| Connection to printer | RS-232 or integrated |
| Programs and Interface | |
|---|---|
| Number of programs | 10 (4 preset and 6 user free) |
| Programmable auto-start | Up to 24h |
| Screen type | LCD display |
| Door and Safety | |
|---|---|
| Opening door mode | Horizontal swiveling door with blocking wheel |
| Monitoring of sterilization parameters | Self-control of obtained values (Tº & t) vs programmed values. Cycle is automatically interrupted if obtained values differ from programmed values |
| Pressure display | Pressure gauge on control panel |
| Water Management and Drainage | |
|---|---|
| Water management | Water is directly poured into the sterilization chamber |
| Drainage system | Drainage connection operated by an independent drainage valve on control panel for manual release of sterilization chamber water tank |
| Additional Features | |
|---|---|
| Casters | Included standard casters, optional upgrade to premium casters with brakes |
| Model | TLV-50, TLV-75, TLV-110, TLV-150 |
|---|
